Worm gear motors

Worm gear reducer with variator

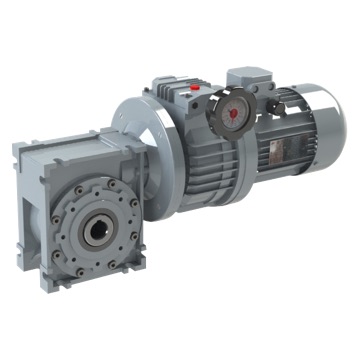

VMQ Worm gear reducer with variator

The variator is a mechanism of planetary gearsets that, through friction, transmits power which produces a decrease of the regular output speed. The speed variation is obtained by displace the planetary discs radially. The power transmission is carried out of progressive and silent way,without stage, with a maximum performance for this kind of units of power transmission.

The speed variator can cause a reduction in the output revolutions in its position of maximum reduction to 5 times the pertaining the maximum, being the last one the two thirds of the angular input speed. So, if the input is realized with a 4 pole motor, 1500 ropm, will be obtained a maximum output speed of 1000 rpm and a minimum of 200 rpm.

The variations in the output speed will be controlled by the turn in one an another sense of the wheel, according to increase or decrease this speed. The turn produced in the wheel will correspond directly with the increment or decrease in the output speed, varying the sensitivity with the size of variator.

Searcher:

Assembly Position



It will be necessary to attend to the same needs specified in each case for the types of reducer that mount the variator.

In particular, the level of oil of the variator must be assured and visible in its indicator, for all the positions of assembly permited.



Maintenance and lubrication

It will be necessary to attend to the same needs specified in each case for the types of reducer that mount the variator.

In particular, to the sped variator should carry out a first change of oil before its first 300 hours of working. After this action, will suffice with carrying out the following changes each 3000 hours of use. It will be necessary to verify regularly the lubricant level of the variator.



Temperature during the work

Given the way of working of the variator, the power transmission is carried out by friction, during the work it will be an increase of temperature in its surface with regard to the environmental temperature.

This increase will come given by the size of variator, oscillating among a 20% in the smaller sizes and a 50% for de bigger ones. At the same time, this temperature will be able to a 25% superior during its first 300 hours of work.
