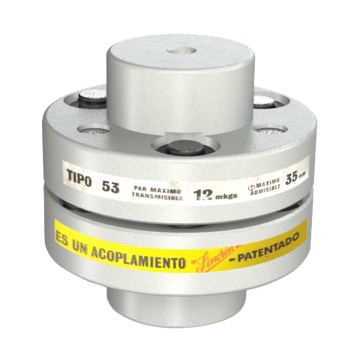

SINCRON FLEXIBLES COUPLINGS SERIE 50

The SINCRON flexible coupling is a classical transmission organ, simple in its construction, but offers a total operating safety.

The coupling consists of two flanges, manufactured of a high quality cast iron. Each disc has the same number of driving bolts as of holes will house the driving bolts mounted on the opposite flange.

The bolts are made of steel and bear high quality synthetic rubber flexors of special grooved profile which confers them a high elasticity.

Searcher:

FITTING OF THE FLEXIBLE COUPLING
SITUATION OF THE KEYWAY
It is very important to situate the keyway in a section of the flange that offers the greatest strength. Before the keyway should always be made in front of a driving bolt as shown in the drawing at the sight.



SINCRÓN ALIGNMENT OF THE FLEXIBLES COUPLINGS
WRONG
CORRECT
